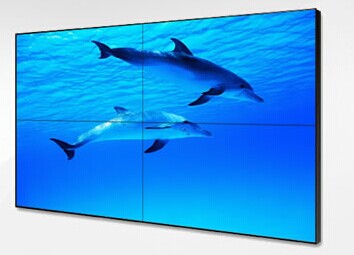

46inch Super Narrow Bezel Video Wall with 450cd/m2 Brightness and 5.3mm ultra-narrow bezel

Click Here to copy , Send to a Friend
favorites

Product Description
Feature:
• Ultra-narrow frame design,No seamless splicing photo qualit.
• Frame compensation function | restore the true picture.
• Built-in splicing function | Maximum 15 units x 15 units stitching.
• Support multi -signal interfaces.
• Many kinds of splicing application.
• LED back light, Effectively prevent the screen central and edge luminance difference
• High resolution, contrast ration, wide viewing angle Ensure highly clear picture quality and real
• Fast response time | Ensure pictures smooth.
• 6 axis color adjustment function,The color is more vivid.
• Dynamic optimization eliminate noise.
• Intelligent cooling system.
• Using high-temperature components.
• Adjust very LCD monitor before the factory Keep same color.
• Remote control, simple operation.
• Can continually work in 24 hours /7 days ,stable operation.


Application industry:
Be widely used in shopping center, transportation hub, broadcasting studio, products showroom, Securities trading hall,
meteorological center,museum etc.

Specification:


Model number

LVW4601

Resolution

1920×1080

Back light

LED

Screen size

46inch

View angle

178°/178°

Pixel pitch（mm)

0.53

Contrast

4000:1

Brightness（cd/㎡)

450

Response time（ms)

8

Display color（M）

16.7

Horizontal scan frequency（kHZ)

20～82(Analog&Digital）

Vertical scann frequency（kHZ)

55～75

Max.resolution

1920×1080

Compatible resolution

640×480、800×600、1024×768、1280×720、1280×1024、1366×768、1600×1200、1920×1080

Input port

VGA×1、DVI×1、HDMI×1、Audio/Video×2、RJ45（for RS232 IN）×1

Output port

RJ45（for RS232 OUT）×1

Input voltage

AC100～240V(+/-10％)/50-60Hz

Power

≤140W

Standby power

≤0.5W

Language

Chinese/English

Intelligent cooling system

Environmental protection mute cooling fan, Energy saving, Reduce the noise, Reduce the temperature, Improve products reliability

Low energy consumption backlight system

Energy saving, reduce LCD panel heat, Improve the reliability of LCD monitor, Effectively solve eye fatigue, Convenient for long-term monitoring

System control way

Chinese/English switching, contrast ration, brightness, definition, color saturation,

tone, Signal switching, Source view, Color temperature adjustment, Operation state display

Operation mode

key control, infrared control, remote control

video format

PAL/NTSC

Casing material

Metal

Color

Black

Storage temperature

0°ï½ž50°

Work humidity

10%～90%

Storage temperature

-20°ï½ž60°

Storage humidity

0%～90%

Environment height( Boot)m

0-3000

Size（W×H×D）mm

1023.98×578.27×125.6

Weight(kg)

24.3

Splicing gap mm

5.3

Certification

CCC/CE/ROHS
