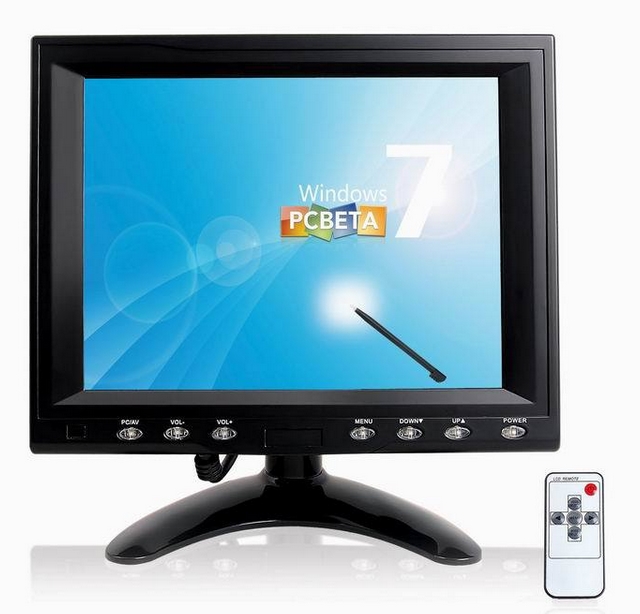

8inch Touchscreen monitor

Click Here to copy , Send to a Friend
favorites

Product Description
 Specification:

Model number

YT-0801

LCD screen

Panel size

8inch TFT-LCD, 4:3

Resolution

800x600, 1024*768option

Display Colors

16.2M

Brightness

350cd/m2

Backlight

CCFL backlight

Response time

12ms

View angle

Horizontal:170°;Vertical:160°

Contrase ratio

400:1

Duration

50000hours

Touchscreen

Touchscreen

4-wire resistive touchscreen(5-wire resistive touch, Capacitive,SAW option)

touch validity

>1,000,000

Touch interface

USB or RS232 optional

Touch response time

2ms

Interface

Connector

VGA for video signal

USB (or RS232) for touch

Other

Setup (optional)

1) provide wall brackets for wall-mounting, VESA 75mm&100mm

2) provide stable mental base to support the monitor

OSD  control

AUTO,+,POWER,-,MENU

brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset

Power supply

External Power Supply:100 to 240V  (DC 12V)

Power consumption

Max 30W

Operation system

Windows,Linux,Mac.

Operation Environment

Workable Temperature:-10 to 60°C

Storage temperature:-20 to 70°C

Operate relative humidity:20% to 80%;

storage relative humidity:10% to 90%

Certificate

CE, ROHS

Warranty

1 year,provide spare parts

Assessories

power cable,USB cable, VGA cable,Adapter, Drive and warranty card

Packing

Net weight

1.6 Kgs/pcs,include stable mental base

Gross weight

2.5 Kgs/pcs,include stable mental base

Monitor size

205*163*31mm(not include base)

Each unit box size

310*85*225mm
